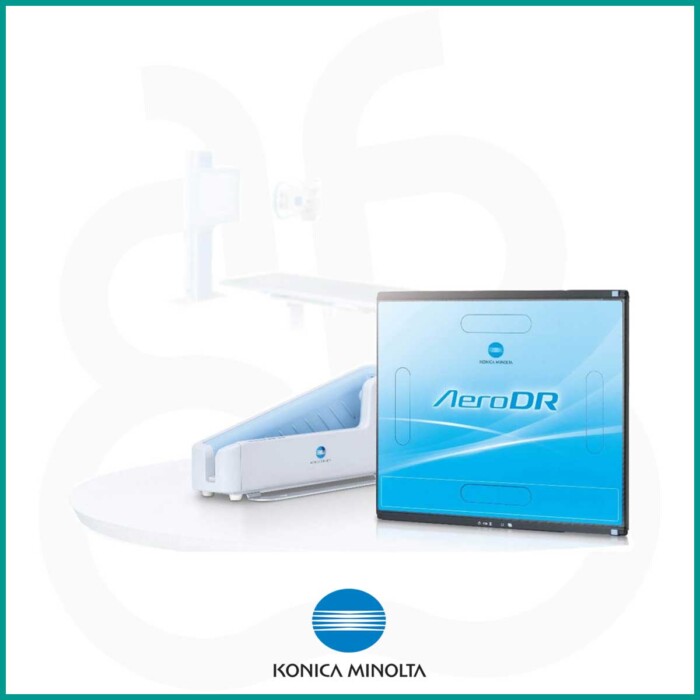

AERO DR 2S – Konica Minolta

Il pannello AeroDR-2S permette di digitalizzare la diagnostica analogica in pochi step e di dotarla del sistema DR wireless più leggero al mondo. È stato costruito per soddisfare qualsiasi esigenza di utilizzo.

RICHIEDI INFORMAZIONI

Descrizione

Il pannello AeroDR-2S permette di digitalizzare la diagnostica analogica in pochi step e di dotarla del sistema DR wireless più leggero al mondo. È stato costruito per soddisfare qualsiasi esigenza di utilizzo.

SPECIFICHE

Product type: Cassette-type wireless flat panel detector
Detection method: Indirect conversion method
Automatic X-ray detection: AeroSync
Scintillator (fluorescent substance): CsI (Cesium Iodide)
External dimensions: 383.7 (W) x 460.2 (D) x 15.9 (H) mm (equivalent to a 14 x 17 inch cassette)
Weight: 2,5 kg
Pixel size: 175 μm
Image area size: 348.95 x 425.25 mm (1994 x 2430 pixels)
A/D conversion: 16 bit (65,536 gradients)
Withstand load: Point load: 150 kg @ ø 40 mm; Face load: 300 kg
Waterproof characteristics: IPX6
Communication: Dedicated Ethernet connection/Wireless LAN (IEEE802.11 a/n compatible) 5.0 GHz/ 2.4 GHz
Dynamic range: 4 digits
Previewing time: Less than 2 seconds
Cycle time: Approx. 4 seconds (wired) Approx. 6 seconds (wireless)
Battery/expected lifetime: Lithium-ion capacitor (built-in)/Equivalent to life of AeroDR detector
Capacitor charging time: 13 minutes or less (from 0 to 100%)
Exposures per full charge: 150 images / 4.1 hours. Under conditions that the interval between studies is 5 minutes and 3 images are captured per study, assuming 20 seconds for each exposure to position the patient
Battery dur ation in standby status: Approx. 10 hours after full charge
