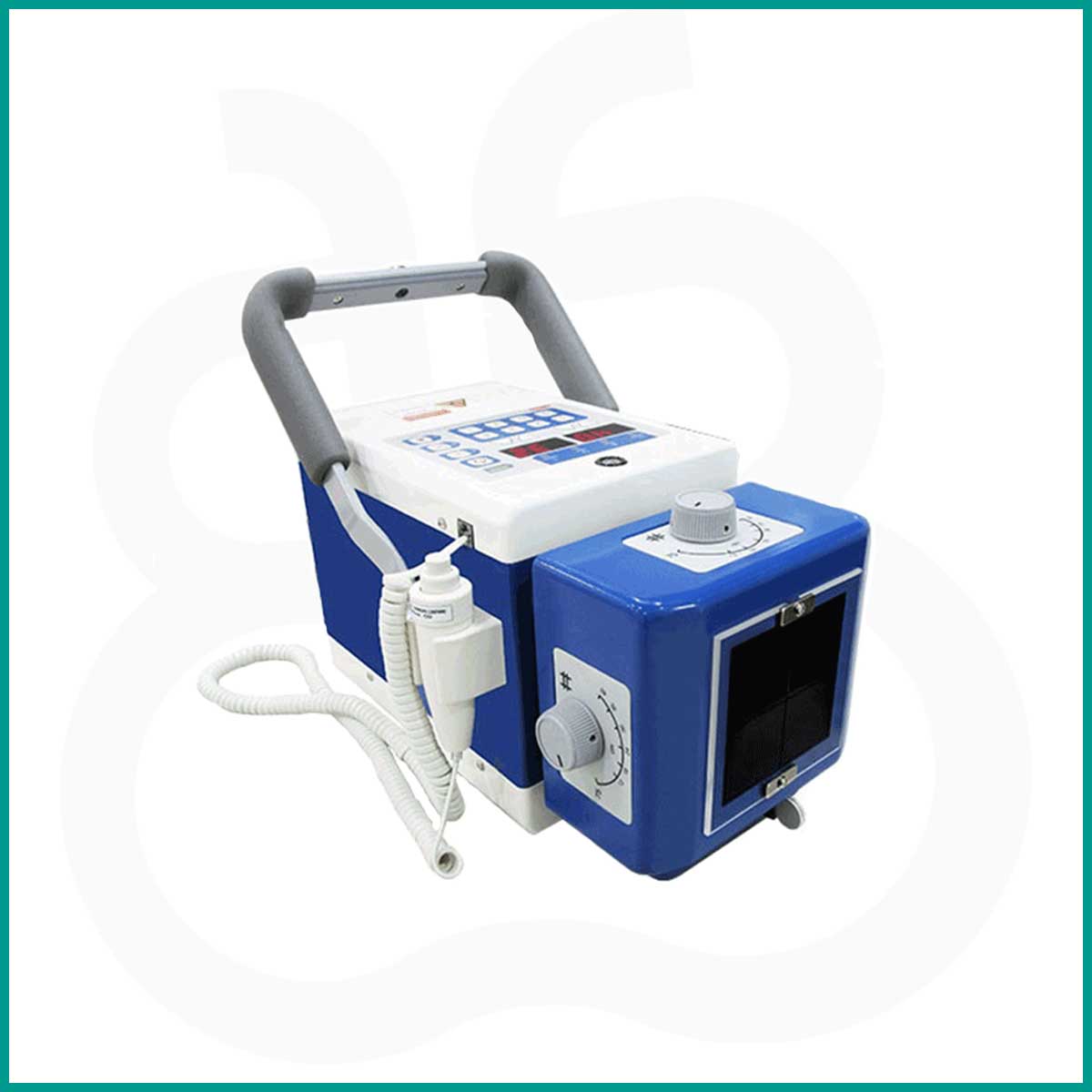

EcoRay ULTRA 1025BT

EcoRay ULTRA 1025BT

EcoRay ULTRA 1025BT è dotato di un’uscita ad alta potenza fino a 100 kV 1,6 kV, 100 kV/25 mA.

RICHIEDI INFORMAZIONI

Descrizione

EcoRay ULTRA 1025BT è dotato di un’uscita ad alta potenza fino a 100 kV 1,6 kV, 100 kV/25 mA.

SPECIFICHE

Generator: High Frequency Inverter
HF GENERATOR
Max. Output Power: 1.6kW (100Kv@16mA)
Max. kV/mA: 100kV / 25mA

X-ray TUBE
Focal Spot: 1.2mm x 1.2mm

Input Power: 100-240VAC, 50/60Hz for Battery charging power

COLLIMATOR
X-ray Field Size: Max. 35cm x 35cm @66cm SID
Lamp: LED Lamp
Dual Laser: 66cm SID, Class II

USER INTERFACE
Display: kV, mAs, Ready, X-Ray, Wait and Error LED display
Operation Switch: 1. kV & mAs Up/Down
2. Built in dual laser & Collimator lamp ON/OFF
3. Reversible Display
4. APR memory storage

APR: 7 Memory Standard and extendable 12 Memory
Weight: 11.4kgs
Dimension (mm): 334 x 164 x 192
Advantage: Cordless & Hybrid Function
