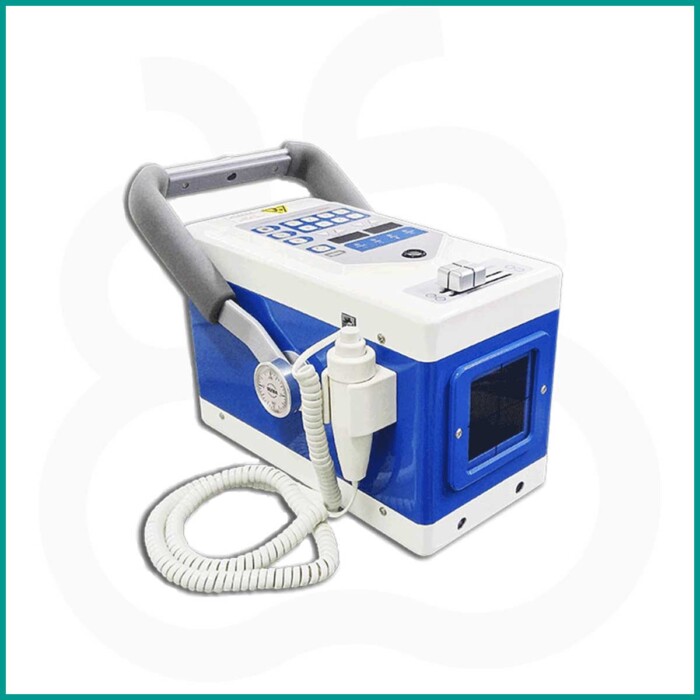

EcoRay ULTRA 90BT

Descrizione

EcoRay ULTRA 90BT è il modello più leggero tra i modelli BT. È dotato di una batteria da 1,5kW. Potenza di uscita 90kV/20mA.

SPECIFICHE

Generator: High Frequency Inverter
HF GENERATOR
Max. Output Power: 1.35kW (90kV@15mA)
Max. kV/mA: 90kV / 20mA

X-ray TUBE
Focal Spot: 1.2mm x 1.2mm

Input Power: 100-240VAC, 50/60Hz for Battery charging power

COLLIMATOR
X-ray Field Size: Max. 27cm x 27cm @66cm SID
Lamp: LED Lamp
Dual Laser: 66cm SID, Class II

USER INTERFACE
Display: kV, mAs, Ready, X-Ray, Wait and Error LED display
Operation Switch: 1. kV & mAs Up/Down
2. Built in dual laser & Collimator lamp ON/OFF
3. Reversible Display
4. APR memory storage

APR: 7 Memory Standard and extendable 12 Memory
Weight: 8.5kgs
Dimension (mm): 280 x 140 x186
Advantage: Cordless & Hybrid Function
