AERO DR NS – Konica Minolta

Descrizione

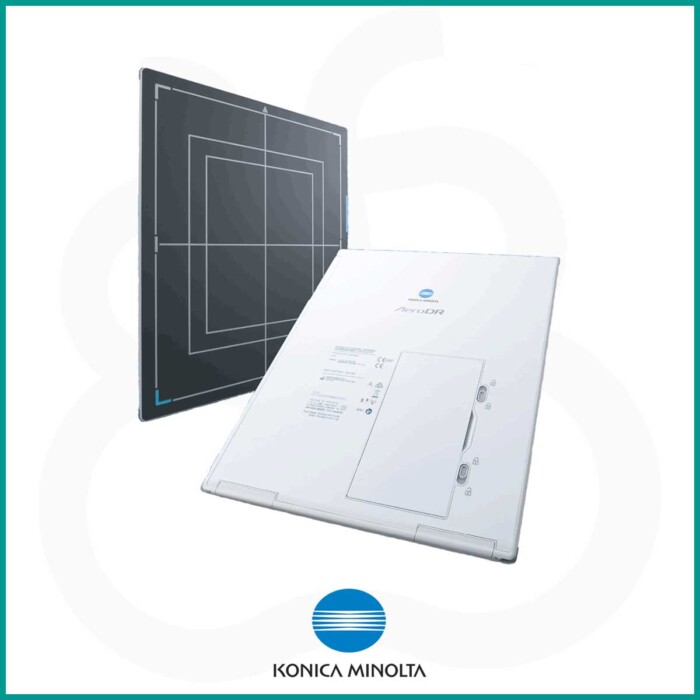

AeroDR-NS è un pannello caratterizzato da schermo piatto da 14’’x17’’. Supporta l’operatore con una soluzione completa che copre l’intero workflow ed è compatibile con ogni stanza radiografica e con ogni sistema radiografico portatile.

SPECIFICHE

Console software: ImagePilotTM
X-ray Detection method: Method: indirect, Scintillator: CsI (Cesium Iodide)
DQE: 40% (1lp/mm)
Pixel size: 150 μm
Image area (valid image): 2304 x 2800 pixels (345.6 x 420.0 mm)
X-ray linkage: AED: Automatic Exposure Detection (Automatic X-ray detection without X-ray I/F)
Cycle time: First View: 4 sec / Cycle Time: 10 sec
Internal AP: Available (in combination with notebook PC-type ImagePilot)
Image Storage: Available (up to 200 images)
Wireless specifications: IEEE802.11a/n/ac
Durability: Total surface load: 150 kg; Point load: 100 kg @ φ40 mm
Water resistance: Panel: IPX1 including battery
Battery: Lithium ion battery (detachable type)
Battery performance: 212 images or 5.9 hours
Battery duration in standby: 7.6 hours
Available grid: 40lp/cm
Dimension: 384 mm x 460 mm x 15 mm (ISO-4090-2001(JIS-Z4905) compliant)
Weight: 3.6 kg (including battery)
