Il Lettore smartcard Omnikey 1021 USB è perfetto per l’uso della Carta regionale e nazionale dei Servizi e per la firma digitale.
Lettore smartcard
€18.85 IVA esclusa
Descrizione
Il Lettore smartcard Omnikey 1021 USB è perfetto per l’uso della Carta regionale e nazionale dei Servizi e per la firma digitale.

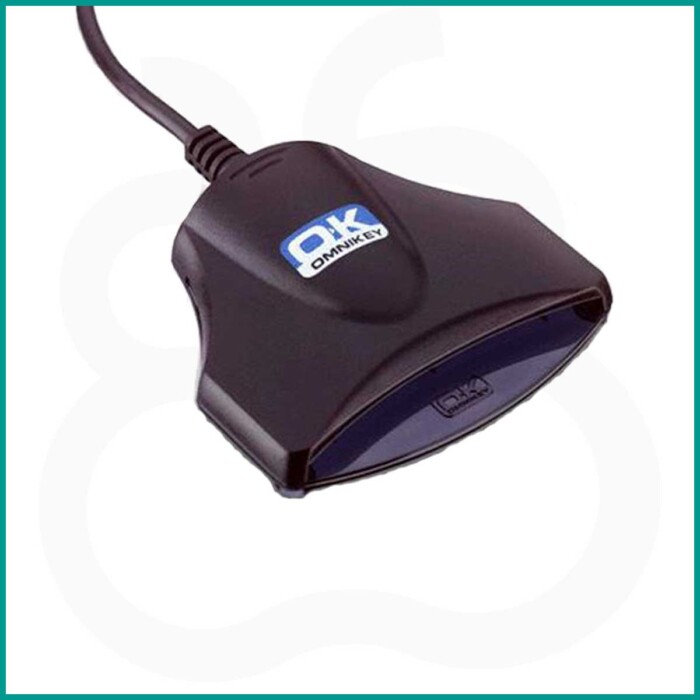

Il lettore Omnikey 1021 USB è caratterizzato da una struttura nera ed un LED rosso. Questo lettore è compatibile PC/SC e supporta tutte le ISO 7816 che riguardano le smartcard a microprocessore.
I prodotti OMNIKEY sono progettati per supportare qualsiasi smart card per qualsiasi applicazione su qualsiasi computer. Supportano tutti i sistemi operativi rilevanti da tutte le piattaforme Windows a Linux e Mac OS.
Le certificazioni per tutti gli standard industriali pertinenti, inclusi PC / SC, WHQL, USB CCID, EMV 2000 e Common Criteria assicurano la conformità a livello mondiale e una facile integrazione in qualsiasi sistema.
Caratteristiche:
- Dimensions: 2.91″ x 2.52″ x 0.51″ (74 x 64 x 13 mm)
- Weight: 1.69 oz (48g)
- Power Supply: Bus powered
- Operating Temperature: 32–131 °F (0–55 °C)
- Operating Humidity: 10–90% rH
- Host Interface: USB 2.0 CCID (also compliant with USB 1.1)
- Transmission Speed: 12 Mbps (USB 2.0 full speed)
- Standards: ISO 7816 & EMV 2000 Level 1
- Protocols: T=0, T=1, 2-wire: SLE 4432/42 (S=10); 3-wire: SLE 4418/28 (S=9), I2 (S=8)
- Card Size: ID-1 (full size)
- Smart Card Interface Speed: 420 Kbps (when supported by card)
- Smart Card Clock Frequency: Up to 8 MHz
- Supported Card Types: 5V, 3V and 1.8V Smart Cards, ISO 7816 Class A, B and C
- Power to Smart Card: 60 mA
- Smart Card Detection: Movement detection with auto power-off / Automatic detection of smart card type / Short circuit and thermal protection
- 8-Pin Handling: C4/C8 supported
- Supported APIs: PC/SC driver (ready for 2.01), CT-API (on top of PC/SC),Synchronous-API (on top of PC/SC), OCF (on top of PC/SC)
PC/SC Driver Support Windows XP/ Vista/7 (32 bit/64 bit)/8 (32 bit/64 bit)/8.1 (32 bit/64 bit), 2003 Server,
2008 Server, Windows ® CE 5.0/CE.NET/CE 6.0 (depending on hardware), Linux® , Mac® OS X (Intel) - Embedded Technology: OMNIKEY Smart@USB Chipset
- Composition: Polycarbonate
- Connector Cable: 59.1″ (150cm)
- Durability: 100,000 insertions
- Compliance/Certification: Microsoft WHQL, EMV 2000 Level 1, ISO 7816, HBCI, USB 2.0, (USB 1.1 compatible), CCID1, GSA FIPS201 approved product list
- Safety/Environmental: CE, WEEE, FCC, UL, VCCI, MIC, RoHS
Informazioni aggiuntive
Peso | 0.100 kg |
---|---|
Dimensioni | 10 × 5 × 5 cm |
